Acid Proof Industrial Chemical Pumps , Double Volute Centrifugal Pump

Name: Acid Proof Industrial Chemical Pumps Double Volute Centrifugal Pump
Brand: Chengdu Yongyi
Price: 500 USD

Acid Proof Industrial Chemical Pumps , Double Volute Centrifugal Pump Manufactures

Brand Name : Chengdu Yongyi

Model Number : WD

Certification : ISO9001

Place of Origin : Sichuan, China

MOQ : 1 set

Price : USD 500-5000/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 300 sets per month

Delivery Time : 25 working days after receiveing advance payment

Packaging Details : free fumigation export wooden box packaging

Max Flow : 1000m3/h

Max Head : 120m

Liquid : Corrosion Liquid

Brand : Chengdu Yongyi

Speed : 1450rpm

Other names : chemical process pump

Keywords : Volute Centrifugal Pump

Type : Chemical Treatment

Contact Now

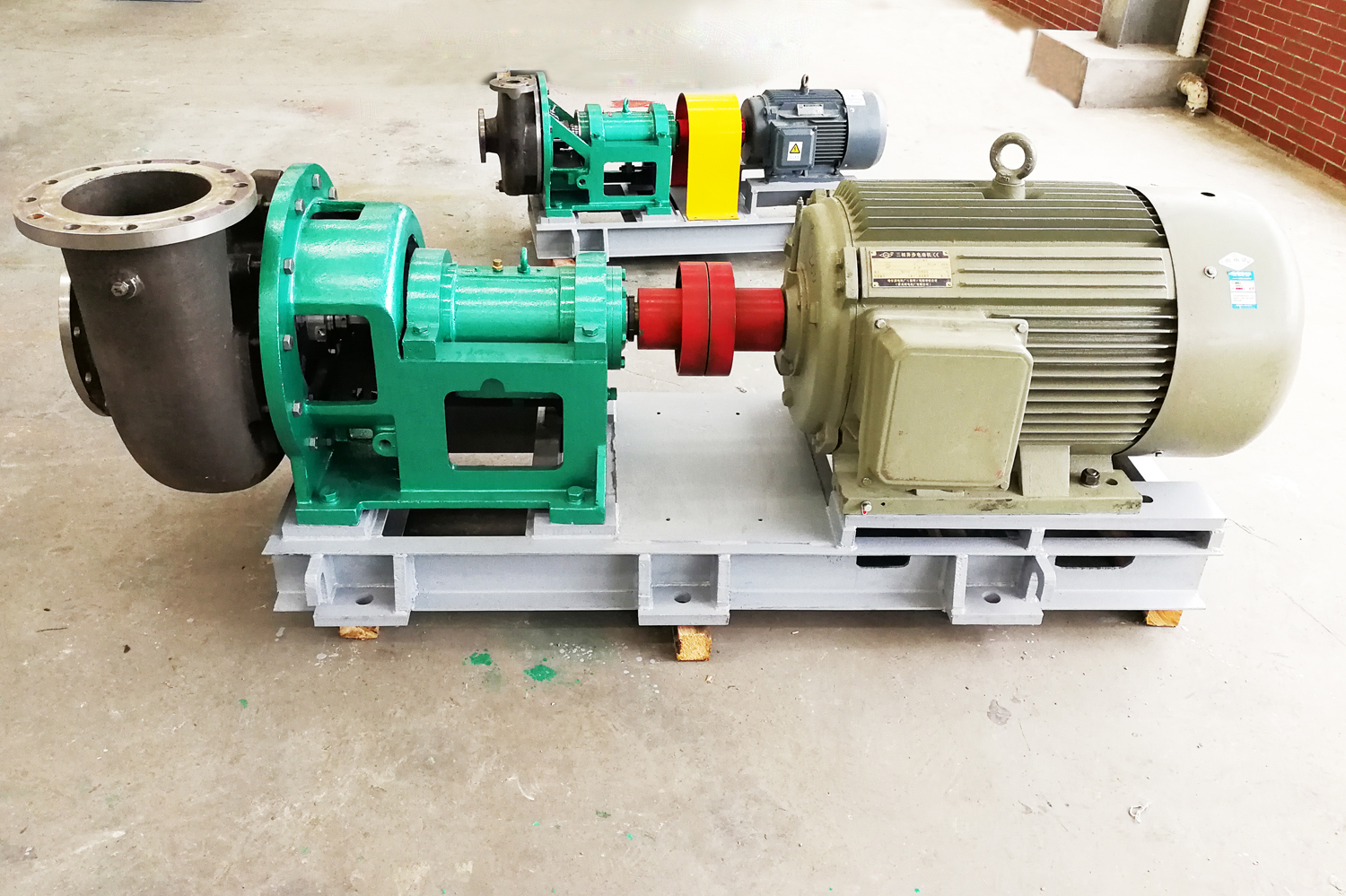

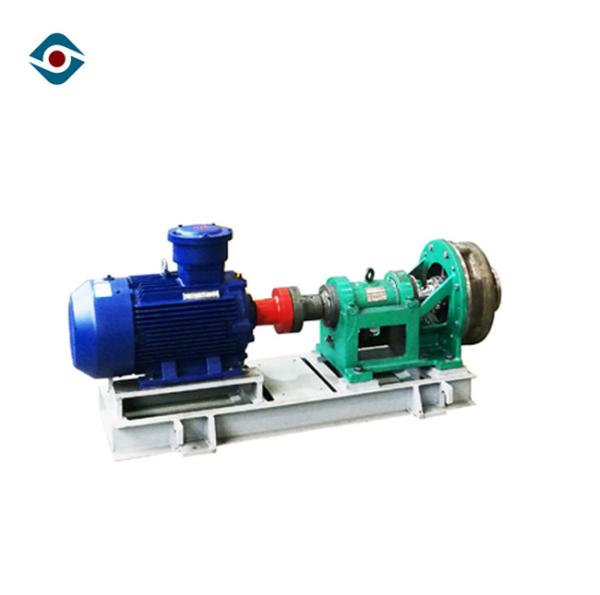

Double Volute centrifugal Pump Acid Proof Chemical Circulating Pump

Brief Introduction

WD-series pumps are horizontal corrosion-resistant centrifugal pumps, with spacious impeller flow channel and superior hydraulic performance.
The back shroud of impeller is equipped with back blade, which can reduce media leakage.
Axial adjusting device is equipped to adjust the space between impeller and pump body.
Variable types of shaft seal (including mechanical seal, dynamic seal + packing seal, dynamic seal + K-type seal) are adopted to meet the shaft sealing requirements for carrying variable media.

Features

• Excellent performance, Reliable, High efficiency and low operating costs.
• Suitable for the most demanding industrial applications.
• Quick and easy installation, safe operation, easy maintenance and service.
• Modular design minimize the spare parts inventory cost.

•The excellent structure design ensure there is no clogging tendency.
•The bearing is lubricated by oil or grease.

Acid Proof Industrial Chemical Pumps , Double Volute Centrifugal Pump

Service

Acidic Services
Alkaline Services
Corrosive Slurries
Highly Viscous & High Freezing point Fluids

Technical Parameter

model	Clean Water Performance
model	flow (m3/h)	head (m)	speed (r/min)	maximum efficiency (%)	NPSH (NPSHr) m	pump head weight KG	shaft component
40WD-250	8-20	15-28	1450	39	0.6	141	45
40WD-310	8-40	23-42	1450	45	1	257	55
40WD-350	8-45	35-54	1450	37	1	271	55
50WD-250	10-30	15-28	1450	40	0.7	146	45
50WD-310	15-60	25-42	1450	45	1.1	262	55
50WD-350	15-70	35-54	1450	50	1.1	286	55
50WD-400	20-75	50-75	1450	45	1.1	483	70
65WD-250	30-70	15-28	1450	48	1.1	149	45
65WD-310	30-90	25-40	1450	57	1.4	274	55
65WD-350	40-100	35-54	1450	59	1.5	280	55
65WD-400	50-120	45-75	1450	55	1.7	495	70
65WD-450	50-120	70-95	1450	52	1.7	524	70
80WD-250	70-100	15-25	1450	61	1.5	153	45
80WD-310	70-120	25-40	1450	62	1.7	288	55
80WD-350	70-160	35-52	1450	65	2.0	295	55
80WD-400	70-160	50-75	1450	62	2.0	500	70
80WD-450	70-160	70-95	1450	60	2.0	539	70
100WD-310	100-150	20-38	1450	65	1.9	293	55
100WD-350	100-220	35-50	1450	65	2.5	299	55
100WD-400	100-220	40-72	1450	65	2.5	529	70
125WD-310	120-260	18-36	1450	67	2.8	304	55
125WD-350	120-300	35-50	1450	68	3.2	307	55
125WD-400	140-350	45-70	1450	70	3.4	559	70
125WD-450	150-360	65-90	1450	67	3.6	741	80
150WD-310	200-400	18-35	1450	72	3.8	332	55
150WD-350	200-450	15-48	1450	75	4.2	333	55
150WD-400	200-450	40-65	1450	73	4.2	597	70
150WD-450	200-500	60-80	1450	67	4.5	753	80
200WD-350	300-600	28-47	1450	79	5	583	70
200WD-430	300-650	50-65	1450	75	5.2	765	80
250WD-350	400-900	26-45	1450	79	6.5	850	80
250WD-430	400-900	50-61	1450	75	6.5	910	90

Installation Dimension
